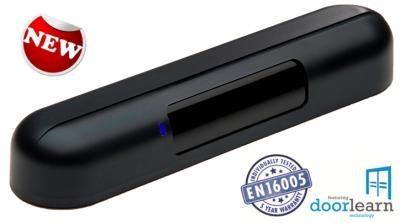

SSR-3 Dual Technology Activation And Safety Sensor

SSR-3 Dual Technology Activation And Safety Sensor
ssr-3-dual-technology-activation-and-safety-sensor6091_large_08756.jpg - Image 1ssr-3-dual-technology-activation-and-safety-sensor6092_large_08756.jpg - Image 2ssr-3-dual-technology-activation-and-safety-sensor6093_large_08756.jpg - Image 3ssr-3-dual-technology-activation-and-safety-sensor6094_large_08756.jpg - Image 4
SSR-3 Dual Technology Activation And Safety Sensor
Automatic Slide Door Openers, Activation And Safety Sensors
from £150.00 (Inc 20% VAT)
Buy Now
Read Description
View Specifications (pdf)



PRODUCT OPTIONS AVAILABLE
TYPE CODE 1+ Qty Buy
SSR-3 Dual Technology Activation And Safety Sensor (black)HOT-SSR-3/BL£150.00Buy
Prices are Inclusive of VAT

SSR-3 DUAL TECHNOLOGY ACTIVATION AND SAFETY SENSOR DESCRIPTION

Silver Finish Also Available On Request

PRODUCT OVERVIEW:
Dual technology, automatic door activation and safety sensor.

Featuring, Door Learn and Uni-directional detecting technology.

EN16005 compliant, with emergency escape route versions available

Microwave + Active Infrared Technology


Large Detection Area
  • Large detection distances ensure timely openings for doors approached by shopping trolleys or fast moving traffic
  • Ideal for airports, DIY stores, garden centres, etc.
Energy Efficiency
  • Unidirectional detecting technology reduces building energy losses by as much as 20%
Pedestrian Safety
  • "Door Learn" technology provides unrivalled pedestrian safety
  • 3-row infrared safety curtain protects pedestrian in the door close area
  • Monitored safety system
Reduced Time Onsite
  • Installation instructions printed on the sensor's body
  • Pre-configured EN16005 compliant factory settings
  • Intelligent software prevents false door activations
  • One piece sensor body construction prevents parts getting lost or broken during installation
Model:
SSR-3: Dual Relay Output Pedestrian Door Activation + Monitored Safety.
Detection Method:
Microwave Motion Detection, K-Band, 24.15Ghz + Active Infrared Detection
Installation height:
2000mm to 3200mm (6.5ft to 10.5ft)
Sensor Dimensions:
265mm (W), 60mm (H), 43mm (D)
Presence Timer:
2s, 30s, 1min and infinity (Active Infrared 3 rows)
IP Rating:
54
Power Supply:
12 to 24V AC or DC ± 10%
Power Consumption:
AC12V-2.5 [VA] (Max), DC12V-150 [mA] (Max)
Operating temperature:
-20°C to +60°C (-4°F to 140°F)
Weight:
254g (0.56 lbs)
Available Colours:
Black: Product Code = SSR-3/BL. Silver: Product Code = SSR-3/S.

Large Detection Area
Large detection distances ensure timely openings for doors approached by shopping trolleys or fast moving traffic
Ideal for airports, DIY stores, garden centres, etc.
Energy Efficiency
Energy Efficiency
Unidirectional detecting technology reduces building energy losses by as much as 20%
Pedestrian Safety
Pedestrian Safety
"Door Learn" technology provides unrivalled pedestrian safety
3-row infrared safety curtain protects pedestrian in the door close area
Monitored safety system
Reduced Time Onsite
Reduced Time Onsite
Installation instructions printed on the sensor's body
Pre-configured EN16005 compliant factory settings
Intelligent software prevents false door activations
One piece sensor body construction prevents parts getting lost or broken during installation
