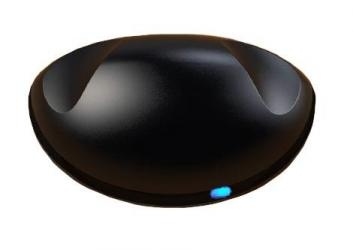

Hotron HR50/HR50-Uni Activation Sensor

Hotron HR50/HR50-Uni Activation Sensor
hotron-hr50~hr50-uni-activation-sensor6031_large_20243.jpg - Image 1hotron-hr50~hr50-uni-activation-sensor6032_large_20310.jpg - Image 2hotron-hr50~hr50-uni-activation-sensor6033_large_20341.jpg - Image 3 - Image 4
Hotron HR50/HR50-Uni Activation Sensor
Automatic Swing Door Openers, Activation And Safety Sensors
from £55.20 (Inc 20% VAT)
Buy Now
Read Description
View Specifications (pdf)



PRODUCT OPTIONS AVAILABLE
TYPE CODE 1+ Qty Buy
Hotron HR50-Uni /BL (black)UNI-Directional Activation SensorHOT-HR50-UNI/BL£70.80Buy
Hotron HR50/BL (black)BI-Directional Activation SensorHOT-HR50/BL£55.20Buy
Prices are Inclusive of VAT

HOTRON HR50/HR50-UNI ACTIVATION SENSOR DESCRIPTION

Large Detection Area
Large detection distance ensures timely door openings for doors approached by shopping trolleys or fast moving traffic.
Adjustable radar antenna to the right/left or up/down allows the detection area to be focused where it is required
Swing Door Compatible
Uni-directional detecting technology allows the HR50-UNI to be used as an activation sensor by mounting above the hinge on the swing side of swing doors
Pedestrian Safety
Turtle mode maintains detection of slow moving pedestrians as they approach the door
Energy Efficiency
Unidirectional detecting technology reduces building energy losses by as much as 20%

Model:
HR50 & HR50-UNI: Pedestrian Door Activation
Detection Method:
K-Band 24.125Ghz - Microwave Motion Detection
Installation height:
Max 4000mm (13.1ft)
Sensor Dimensions:
120mm (W), 70mm (H), 41.5mm (D)
IP Rating:
54
Power Supply:
12 to 30V DC, 12 to 24V AC
Power Consumption:
40mA (DC24V)
Operating temperature:
-30°C to +55°C, (-22°F to 131°F)
Weight:
91g + 160g(box)
Available Colours:
Black Product Code = HR50/BL or HR50-UNI/BL: Silver Product Code = HR50/S or HR50-UNI/S
