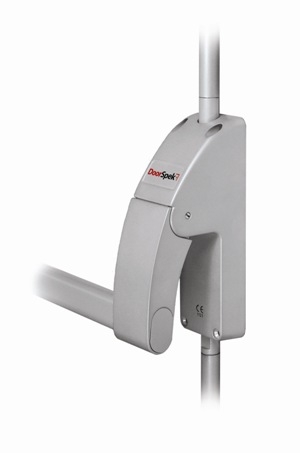

Doorspek DS992 Single Panic Bolt Silver

DS992 SILVER PANIC BOLT

Certified to EN1125: 2008

Fire Rated for Timber and Steel Doors EN1634-1 (see Technical Data)

Certificate of Conformity - AAA018

Suitable for Single Doors and the Inactive Leaf (2nd Opening) of Rebated Double Doors

Universal for Left and Right Hand Doors - Handing can be change to suit an Outside Access Device

Adjustable Top and Bottom Shoot bolts, offering + or – 5mm of adjustment

Available with Manual Hold Back (not to be used on Fire Doors unless the door has been fire tested with unlatched hardware)

Anti-thrust device to prevent the shoot bolt from being retracted.

Supplied with an easy clean socket

Can be used with Securefast Outside Access Device fitted on the outside of the door.

The Slave unit can be supplied with a Micro Switch for linking to an

Access Control System.
Suitable for door 1300mm wide and 2500mm high
Individual Box Size L124cm x W17.5cm x H7cm
Individual Weight 4.8kg
